Brief introduction:

1. Horizontal twin shaft compulsory mixer has the strong mixing ability with uniform mixing and big production output. The admixtures are widely mixed by the shafts.
2. The mixing shafts adopt anti-binding technology to prevent the cement from binding on the shafts.
3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace. at the same time,improves the machines durability and reliability.
4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;

Concrete Mixing System

1. Model: Js1000 twin shaft concrete mixer
2. Capacity:60m3/h
3. Charging Volume: 1600L
4. Discharging Volume: 1000L
5.Max of Aggregate: 60-80mm
6. Mixing Time: 60s

Aggregate Batching System

1.Aggregate Batcher: PLD1600
2.Weighing Hopper: 1.6m³.
3.Mixing motor power:22kw*2
4.Batching Accuracy Error: ≤1%.

Cement Silo

1.Cement Silo: 3sets or Optional.
2.Cement Silo Capacity: 50t / 60t /80t / 100t/ 100t,etc.
3.Cement Screw Conveyor: 3sets or Optional.
4.Cement Screw Conveyor Diameter: 219mm / 273mm or Customized.

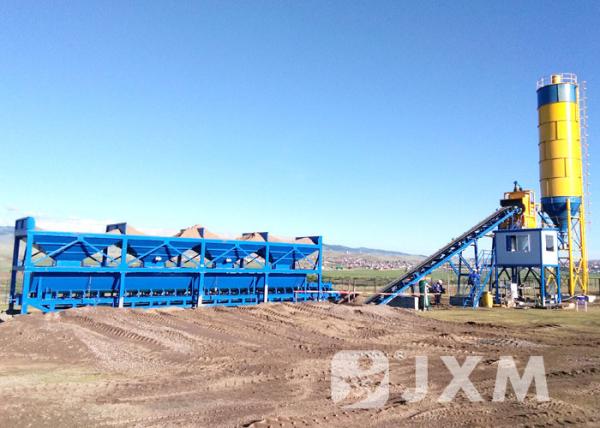

Technical parameter of HZS60 concrete mixing plant
