China Big Capacity 3000 Litre Forced Concrete Mixer Machine

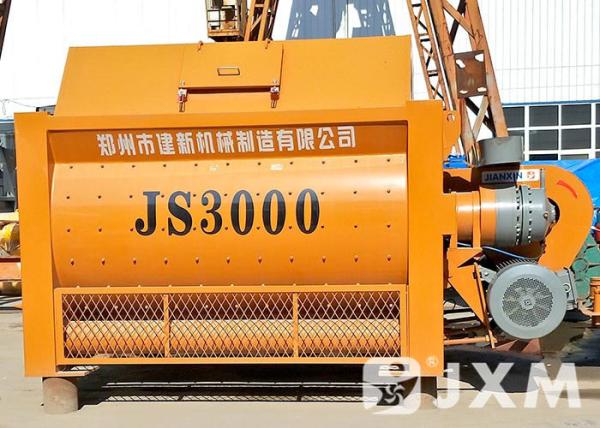

JS3000 concrete mixer equipment introduction
JS3000 concrete mixer discharges 3 cubic meters each time, also
known as 3 square concrete mixer, the cycle time is 60S. The
machine used in 180cbm mixing station . The JS3000 Sicoma mixer is
the large model. Mixing machinery, providing supporting host.
Commonly used in mixing station JS3000 Sicoma mixer (3 square
concrete mixer) has dual advantages as a single independent
operation and also used with the PLD series batching machine
,composed of 180 cbm concrete mixing station , suitable for all
kinds of large, medium and small prefabricated factory and
Large-scale industrial and civil construction projects such as
roads, bridges, water conservancy, and docks. JS3000 Sicoma mixer
can be combined with a certain batching machine model to form a
large-scale commercial concrete mixing station and a double
concrete mixing station, with powerful power and high production
efficiency.
The new JS3000 Sicoma mixer is a compulsory, high-efficiency
equipment that can produce a variety of concrete, such as plastic,
dry hard concrete, high production efficiency, short mixing time,
and beautiful appearance, widely used in large and medium-sized
construction, roads and bridges. Precast plants for the production
of concrete products are ideal equipment for the production of
commercial concrete.
Mixing system
The arc portion of the mixing drum is welded, and the mixing barrel
is provided with five kinds of lining plates, which are fastened
with the countersunk screws and the cylinder body.
Due to the different contact conditions between the aggregate and
the lining, the lining wear is uneven, and the lining can be
exchanged for the purpose of improving the use time of the lining.
The mixing shaft is provided with a special sealing device at the
end of the mixing drum. In order to ensure the quality of the seal,
a special oil supply pump is arranged on the end face of the mixer
drum.
Discharging system
The discharging system consists of a discharge door, a gas pump, a
reversing valve, a gas distribution valve, a cylinder, an electric
mechanism,and other mechanisms.
Electrical System
The electric control circuit is equipped with an air switch, a fuse
and a thermal relay, and has the functions of short circuit and
overload protection. All control buttons and air switch handles and
indicators are located on the distribution box door and are
equipped with a door lock. The button has a protective cover.
Technical Parameters
| project | JS3000 |
| Discharge capacity | 3000L |
| Feed capacity(L) | 4800L |
| Theoretical productivity | ≤150m³/h |
| Maximum granule of aggregate(Lithotripsy/Pebble) | ≤100/120 |
| Speed of mixing blade | 21(r/min) |
| Power of agitator | 2*55KW |
| Shape size(Length, width and height) | 4050*2680*2150 |
